MK5000 System Information

This article will walk you through the system information on your new MK5000 timeclock.  You can use the links below to skip to a specific section of this article. Workwell does not sell accessories (and cannot provide technical assistance with features) related to Door Access or Alarm Bells.

System Information

Appendix1 Schematic Diagram of Access Control Wiring

Appendix2 Input Method Introduction

System Information

To access the system information:

1. Touch the screen to prompt a pop up on the right side of the screen.
2. Click the settings gear >【Sys info】.

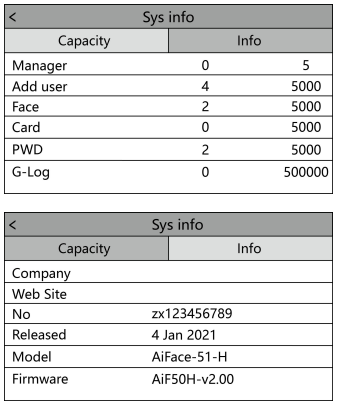

3. Click the tab across the top of the screen for the desired menu option.
   • Capacity (registration inforomation)
   • Info (device information)

Appendix1

Schematic Diagram of Access Control Wiring

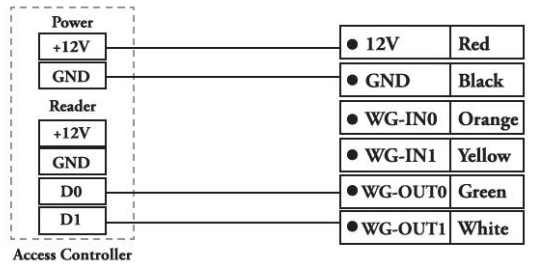

1. Schematic diagram of device wiring port

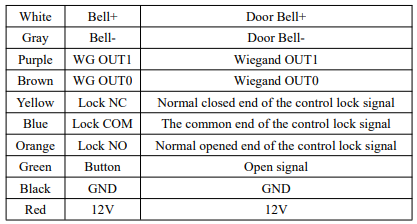

2. Device connection diagram

Note: If the power supply for your access controller is insufficient, the device may shut down automatically when attempting to use the facial recognition feature. In this case, please wire according to the diagram below:

Appendix2

Input Method Introduction

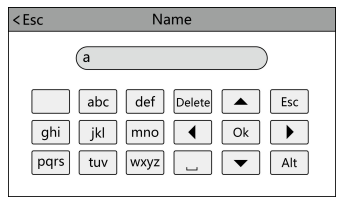

Touch 'Alt' to switch between upper-case letters, lower-case letters, and numbers.

Touch ‘Ok’ to save.

Entering punctuation: When the input method is in the upper/lower-case letter state, touch the Space Bar key to select between a space, period, and the available punctuation characters.
