MK5000 Communication

This article will walk you through performing communication management functions on your new MK5000 timeclock.  You can use the links below to skip to a specific section of this article. Workwell does not sell accessories (and cannot provide technical assistance with features) related to Door Access or Alarm Bells.

• Communication settings
• Server
• Ethernet

Communication

To access the communication settings:

1. Touch the screen to prompt a pop-up on the right side of the screen.
2. Click the settings gear >【Comm set】.

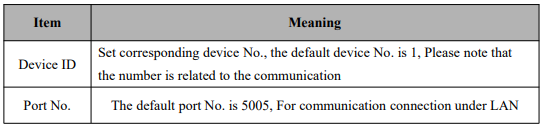

Comm set

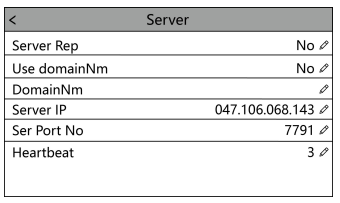

Server

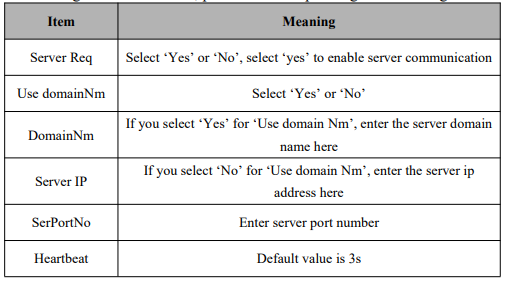

When using WAN connection, you must configure the server settings.

Ethernet

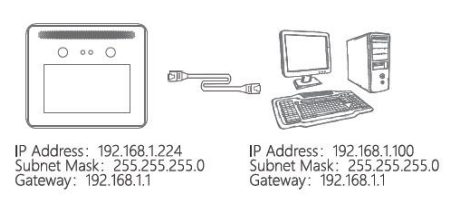

Use Ethernet to connect the device to the computer. An example is shown in the figure below:
